Weldolets are self-reinforced branch connections used to link a smaller (branch pipe) to a larger (run pipe) pipe. They are composed of forged steel and come in a range of shapes and sizes, such as 90-degree and 45-degree elbows, tees, and crosses. Olets are commonly employed in high-pressure and high-temperature environments.
A weldolet is much more than a pipe fitting — it is the silent warrior of every strong piping system. Crafted with exact precision, this fitting forms a smooth, flawless bridge between a big main pipe and a smaller outlet pipe. Instead of using heavy, bulky tees or weak direct welds, the weldolet delivers a streamlined and stress-proof solution that protects the strength of the entire pipeline.
What makes a weldolet truly extraordinary is its smart shape — gently curved to embrace the host pipe with almost artistic beauty. Its beveled edges make welding easier, creating a bond that is not only powerful but also fearless against crushing pressure and burning heat. In places where failure could be disastrous — oil refineries, power plants, and chemical factories — the weldolet becomes a guardian of trust and reliability.
Beyond its purpose, it is a cost-cutting champion, removing the need for expensive reducing tees and reducing weak spots that cause danger. Though small, this mighty component symbolizes efficiency, unbreakable strength, and human innovation.
Standards & Safety Backbone
All weldolets and their variants are governed by internationally recognized standards to guarantee safety and performance:
MSS-SP-97 – Integrally Reinforced Forged Branch Outlet Fittings.
ASME B31.1 – Power Piping Code.
ASME B31.3 – Process Piping Code.
ASME B16.9 – Butt-Welded Fittings.
ASME B16.11 – Forged Socket-Weld and Threaded Fittings.
Types of weldolet used in piping
- Weldolet
- Sockolet
- Threadolet
- Elbolet
- Sweepolet
- Latrolet
- Weldolet
It is used for butt-weld branch connection where standard tee is not available due to size restriction and the piping is of critical/high pressure service. Weldolet makes 90-deg branch, full-size or reducing, on straight pipe. Closer manifolding is possible than with tees. Flat-based weldolet are available for connecting to pipe caps and vessel heads.
Use Range: Commonly used for branch connections from ½ inch up to 36 inches and beyond.
Standards: Designed under ASME B31.1 (Power Piping), ASME B31.3 (Process Piping), and ASME B16.9 for butt-weld fittings.
Strength: Once welded, it becomes one with the host pipe, creating a connection of permanence and indomitable reliability.
Sockolet
It is used for socket welding branch connection which require reinforcing pad. Sockolet makes a 90-deg branch, full-size or reducing on straight pipe. Flat-based sockolets are available for branch connections on pipe caps and vessel heads. For smaller-diameter and high-pressure lines, the sockolet emerges as the silent protector. With its socket-weld design, it offers compact security in confined spaces. It is like the armored knight of branch connections — small in size, mighty in defense.
Use Range: Typically up to 2 inches for high-pressure or small-bore piping.
Standards: Manufactured in accordance with ASME B16.11 for socket-weld fittings.
Power: Compact in size, yet delivers battle-ready strength in high-pressure applications.
Threadolet
It is used for threaded branch connections. Threadolet makes a 90-deg branch, full-size or reducing on straight pipe. Flat-based Threadolet are available for branch connections on pipe caps and vessel heads.When speed matters, the threadolet steps in with a threaded outlet that delivers quick, leak-tight connections without the need for full welding. It is the time-saver of the piping world embodying both efficiency and reliability, especially in low-pressure systems.
Use Range: Generally available up to 4 inches, preferred for low-pressure or non-critical services.
Standards: Conforms to ASME B16.11 (Threaded Fittings).
Impact: A time-saver when welding isn’t practical, providing speed without compromising sealing integrity.

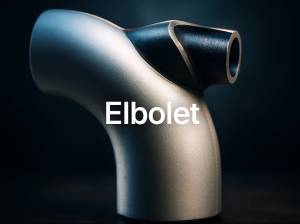

Elbolet
It is used for branch connection on elbows and have the profiles made to suit the elbow. Piping is rarely simple; bends and curves create challenges. The elbolet is the problem-solver, tailor-made for elbows. By allowing branch connections on curves, it brings flexibility where geometry defies tradition, proving that even complexity can be conquered.
Use Range: Available from ½ inch to 24 inches, designed for elbows and bends.
Standards: Manufactured to comply with ASME B31 codes, ensuring secure geometry-based connections.
Power: Brings adaptability to piping layouts where conventional fittings fail.
Sweepolet
Sweepolet is integrally reinforced butt weld branch connection. Sweepolet makes a 90-deg reducing branch from the main run of pipe. Primarily developed for high-yield pipe used in oil and gas transmission lines. Provides good flow pattern, and optimum stress distribution. The sweepolet boasts a long, contoured design that guides flow with elegance. By reducing turbulence and erosion, it extends the lifespan of pipelines. It is the flow whisperer, ensuring that liquids and gases move with grace, not resistance.
Use Range: Available up to 36 inches, ideal for large-bore, high-flow systems.
Standards: Manufactured under ASME B31.3 for process piping and MSS-SP-97 (Integrally Reinforced Branch Fittings).
Latrolet
Latrolet is used for branch connection at an angle. It makes a 45-deg branch from the main pipe. Mostly latrolets are used in the flare relief lines where the branches are going to connect with the main flare headers, Latrolets are always connected towards the flow to flare. Not all branches are straight. The latrolet creates branches at a 45° angle, a symbol of adaptability and precision engineering. It is the fitting of choice where angled flow paths are essential, ensuring performance without compromise. You can also refer the fitting used in oil and gas from this source.
Each type of weldolet is a protector, problem-solver and performance booster. Together they make piping systems not just stronger, but smarter, safer and longer-lasting.
Benefits of Using a Weldolet
A weldolet is far more than just a fitting, it is a strategic advantage in modern piping design. Here’s why:
1. Unbreakable Strength & Reliability
Unlike a simple branch weld (just cutting a hole and welding a pipe), a weldolet is engineered with reinforcement built in. This distributes stress evenly, preventing cracks, leaks, and catastrophic failures. It transforms a vulnerable point into a fortified junction of steel.
2. Wide Range of Sizes & Flexibility
Weldolets are available in ½ inch to 36 inches and beyond, making them adaptable for both small-bore and large-bore connections. Whether you’re adding a tiny instrument line or a massive branch, the weldolet is the perfect fit.
3. Cost-Effective Solution
Compared to installing a full reducing tee, weldolets save material, welding time, and labor costs. They bring economic brilliance without sacrificing safety or strength — the ideal balance of performance and affordability.
4. Compliance with ASME Standards
Weldolets are manufactured under strict ASME and MSS-SP-97 codes, ensuring they meet international safety benchmarks. This means every installation is backed by trust, certification, and engineering integrity.
5. High-Pressure & High-Temperature Resilience
Industries like oil & gas, power plants, and petrochemicals demand fittings that thrive under extreme heat and brutal pressure. A weldolet answers this call, performing where ordinary fittings would crumble.
6. Longer Equipment Life
By minimizing turbulence, erosion, and vibration stresses, weldolets extend the service life of both the main pipe and the branch. This means fewer shutdowns, fewer repairs, and unstoppable performance over the years.
7. Versatility with Types
From sockolets for compact security to sweepolets for smooth flow, weldolets come in multiple variants, each tailored to unique industrial challenges. This makes them the Swiss army knife of branch fittings.
