In oil and gas production, a separator is a specially designed pressure vessel that divides the mixture of fluids coming from a well into its separate components—oil, natural gas, water, and sometimes solids.
When hydrocarbons are produced from the reservoir, they do not come out as pure oil or gas. Instead, they flow as a multiphase mixture, which must be separated before it can be transported, processed, or sold. The separator is the first stage of surface processing that makes this possible.
Why Separators are Important
- Phase separation – Separators allow oil, gas, and water to be collected individually for further handling.
- Safety – Removing gas from liquid streams reduces pressure surges and prevents operational hazards.
- Protecting equipment – By eliminating water, sand, and solids, separators reduce corrosion and erosion in pipelines, compressors, and pumps.
- Improving product quality – Oil must meet export specifications (e.g., low water content) and gas must be clean before entering pipelines.
- Revenue accuracy – Separating fluids ensures each product is measured correctly for sales and custody transfer.
- Environmental control – Produced water can be treated before disposal or reinjection, minimizing pollution.
Types of Separators
- Two-phase separator – separates gas from liquid (oil + water).
- Three-phase separator – separates oil, gas, and water individually.
- Scrubber/knock-out drum – removes liquids from gas streams.
Orientation
- Horizontal separators – handle large volumes efficiently.
- Vertical separators – suitable for smaller footprints and higher gas-liquid ratios.
Why Minimum Straight-Run Piping is Needed Before a Separator
When fluids from a well approach a separator, they usually travel through a network of piping that may include elbows, valves, reducers, or other fittings. These elements disturb the flow, creating turbulence, swirl, and droplet breakup, which can seriously reduce the performance of the separator.
To prevent this, industry practices recommend a minimum length of straight piping before the fluid enters the vessel. This section allows the flow to stabilize and ensures the separator operates as designed.
Benefits of Separators piping straight run requirements
Stabilized Flow Pattern
- Flow disruptions caused by bends and fittings are evened out when the fluid passes through a straight length of pipe.
- This ensures a smoother, more uniform entry into the separator.
Better Droplet Separation
- Valves and reducers often break large liquid droplets into smaller ones.
- A straight run provides space for these droplets to merge back together (coalesce) into larger sizes, making them easier to separate.
Uniform Distribution at Inlet Device
- Inlet devices (such as cyclones, vane distributors, or perforated plates) perform best with balanced, non-swirling flow.
- Straight-run piping helps achieve this uniform distribution.
Maximized Separation Efficiency
- With turbulence reduced and droplet size increased, the separator can achieve higher oil-gas-water separation efficiency.
Reduced Wear on Internals
- Excessive swirl or high-velocity jets can damage or erode sensitive internals.
- Straight runs protect the equipment and extend service life.
Separators piping straight run requirements for common Design Guideline
A straight length equal to 5D–10D (where D is the pipe diameter) is typically required, depending on piping layout and vessel type. Longer runs are used if the inlet piping has several bends, valves, or sudden changes in diameter before the separator.
Separators piping minimum straight run requirements for Vertical Separators
The design of upstream piping for a separator generally depends on the end user’s requirements. If the upstream piping is not yet designed, or the client’s specifications are unavailable, the following guidelines may be used as a reference. These recommendations are based on FMC Separation Systems’ internal design practices and may not always align with specific project requirements. In all cases, the end user’s specifications take priority, unless otherwise agreed upon and communicated to FMC Separation Systems.
When Valves and Reducers used in vertical separator piping
The placement of valves or reducers in upstream piping can significantly affect separator performance. These fittings may cause liquid droplets to shatter into smaller particles. Since smaller droplets are more difficult to separate, poor piping design can reduce the efficiency of separation internals.
To minimize this effect, valves and reducers should be positioned as far upstream of the separator as possible. This allows liquid droplets to recombine (coalesce) into larger sizes before entering the vessel, improving separation performance.

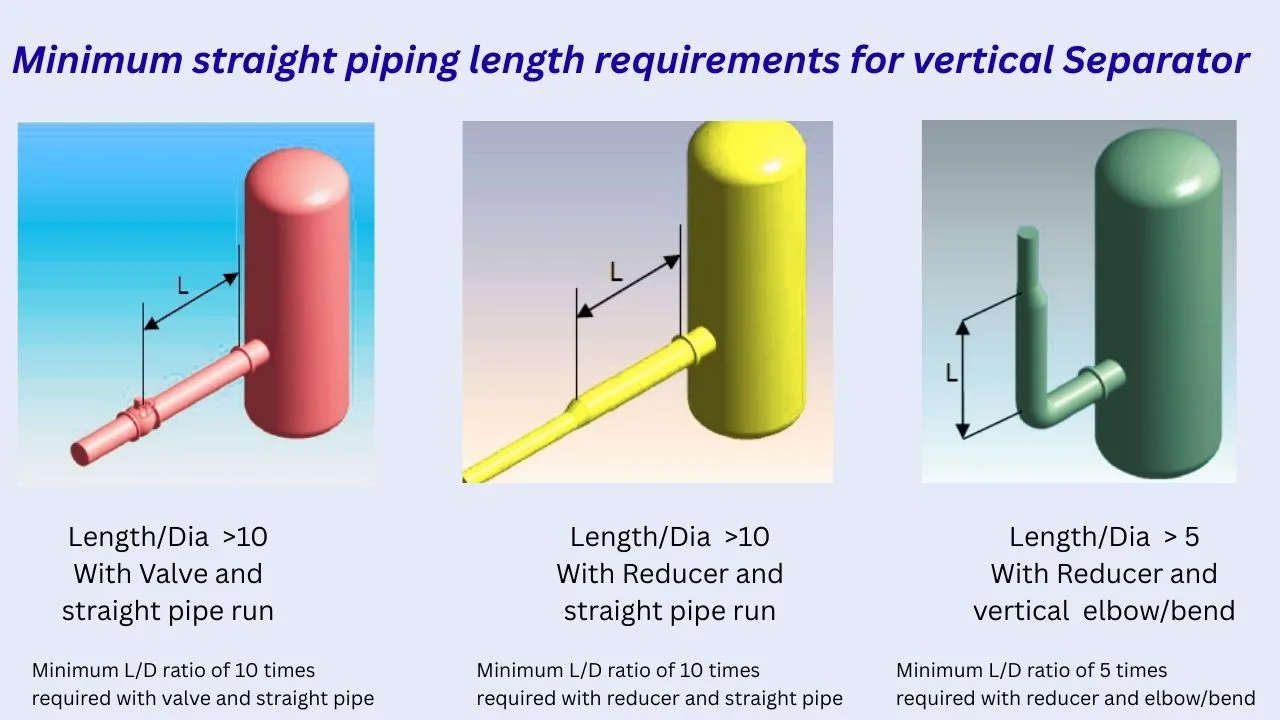

The figure below illustrates the minimum straight-run piping requirements recommended good practices configurations.
When elbow/bends used in vertical separator piping
Bends in upstream piping may introduce swirling flow, which leads to uneven flow distribution across the inlet device. This typically reduces the overall separation efficiency of the vessel.
To minimize swirl effects, a straight run of piping (length L) should be provided downstream of any bend before the flow enters the separator. This straight section allows the flow to stabilize, ensuring better performance of the separation internals.

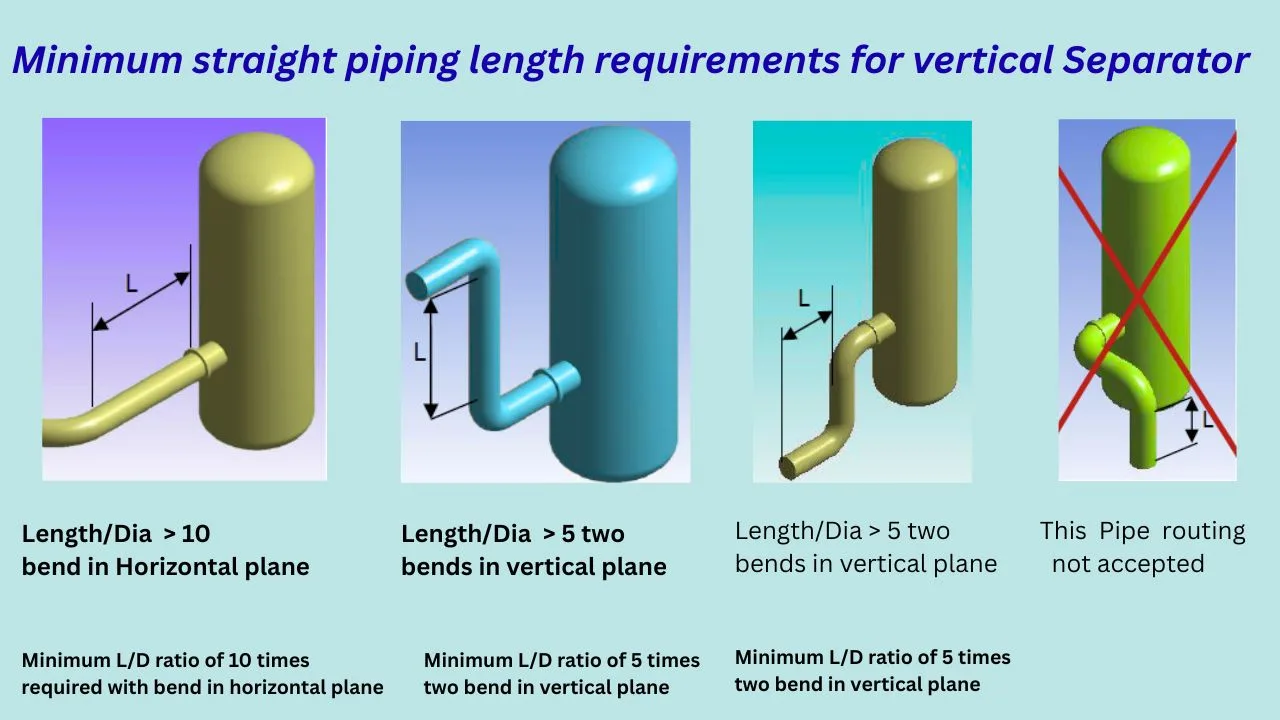

The figure below presents minimum straight-run piping requirements for recommended good practices when bends are used.
Separators minimum straight run requirements for Horizontal Separators
The design of upstream piping for a separator is generally dictated by the end user’s requirements. If these requirements are not yet defined, this document may be used as a guideline. The recommendations provided are based on FMC Separation Systems’ internal design practices and may not always match specific client specifications. In all cases, the end user’s requirements take precedence, unless otherwise agreed upon by the client and formally communicated to FMC Separation Systems.
When Valves and Reducers used in horizontal separator piping
The presence of valves or reducers in upstream piping can cause liquid droplets to break into smaller particles as the flow enters the separator. Since smaller droplets are more difficult to separate, this can reduce the efficiency of separation internals.
To avoid this, valves and reducers should be positioned as far upstream of the separator as possible. This allows droplets to recombine (coalesce), thereby increasing droplet size and enhancing separation performance.

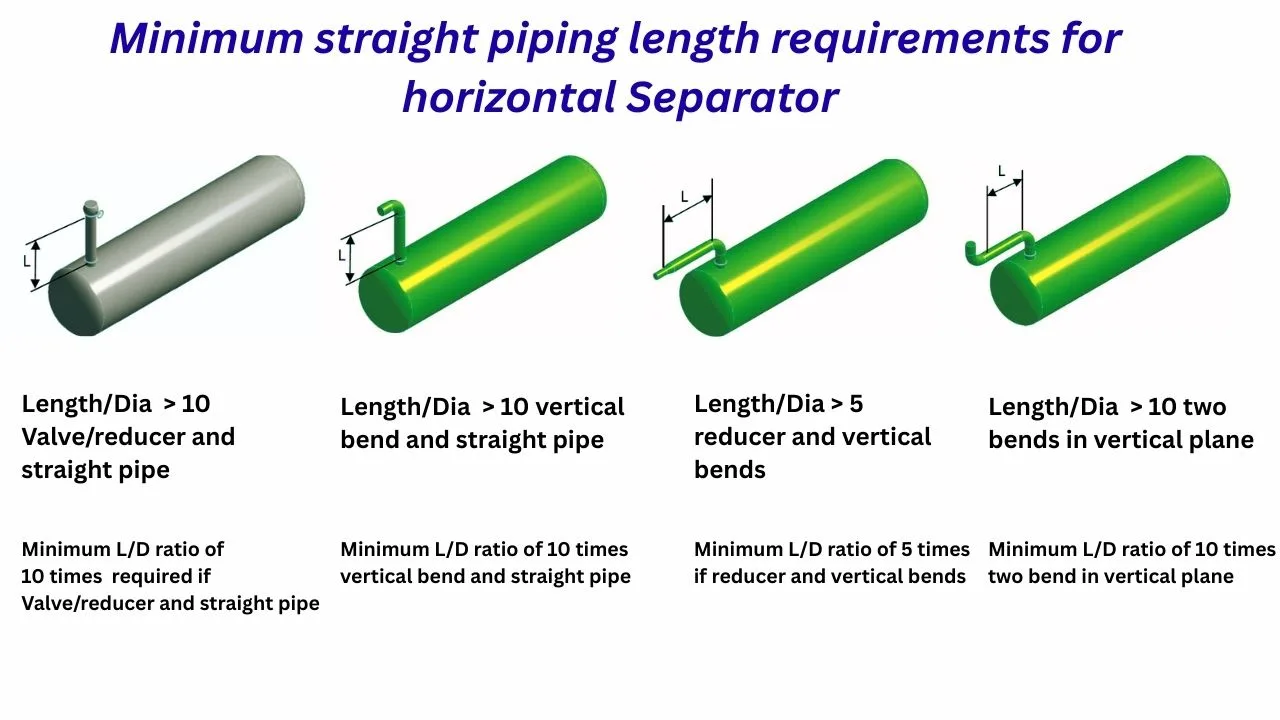

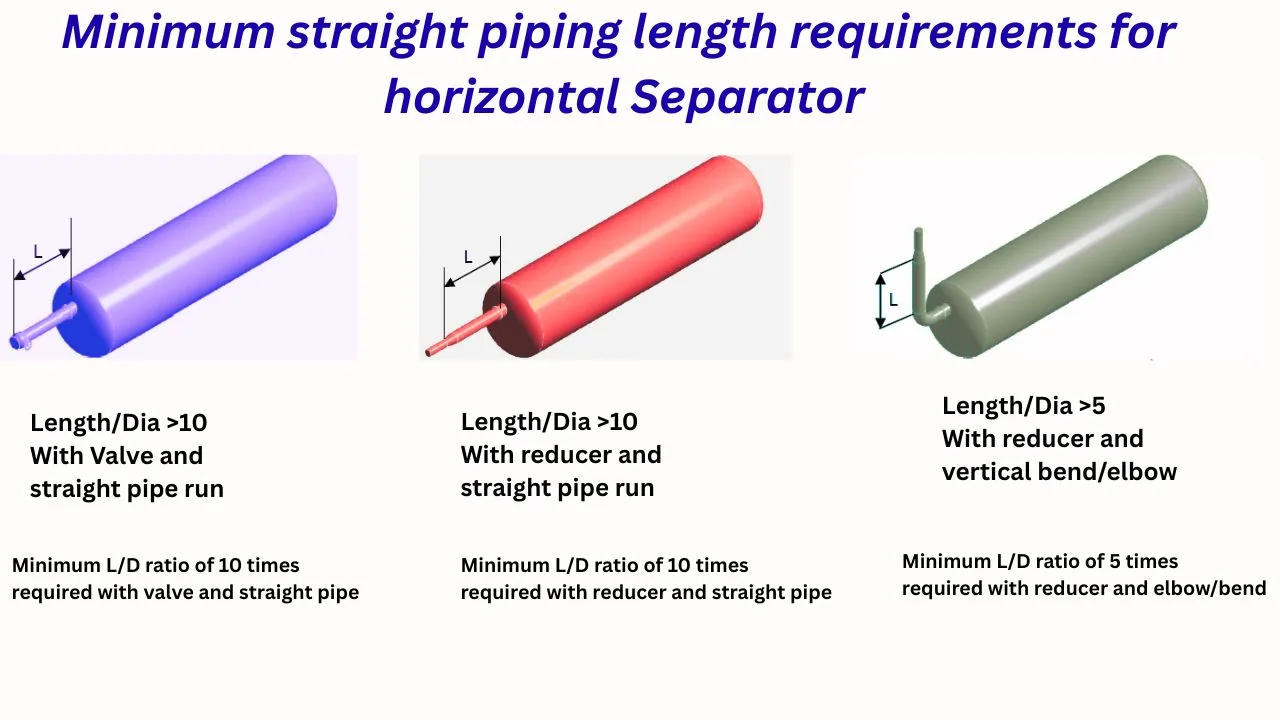

The figure below illustrates minimum straight-run piping requirements for horizontal vessels with front inlet.
When elbow/bends used in horizontal separator piping
Bends in upstream piping can generate swirling flow, which leads to uneven flow distribution across the inlet device and typically reduces the separation efficiency of the vessel.
To minimize swirl effects, a straight run of piping (length L) should be provided downstream of any bend before the flow enters the separator. This straight section helps stabilize the flow and improve separation performance.

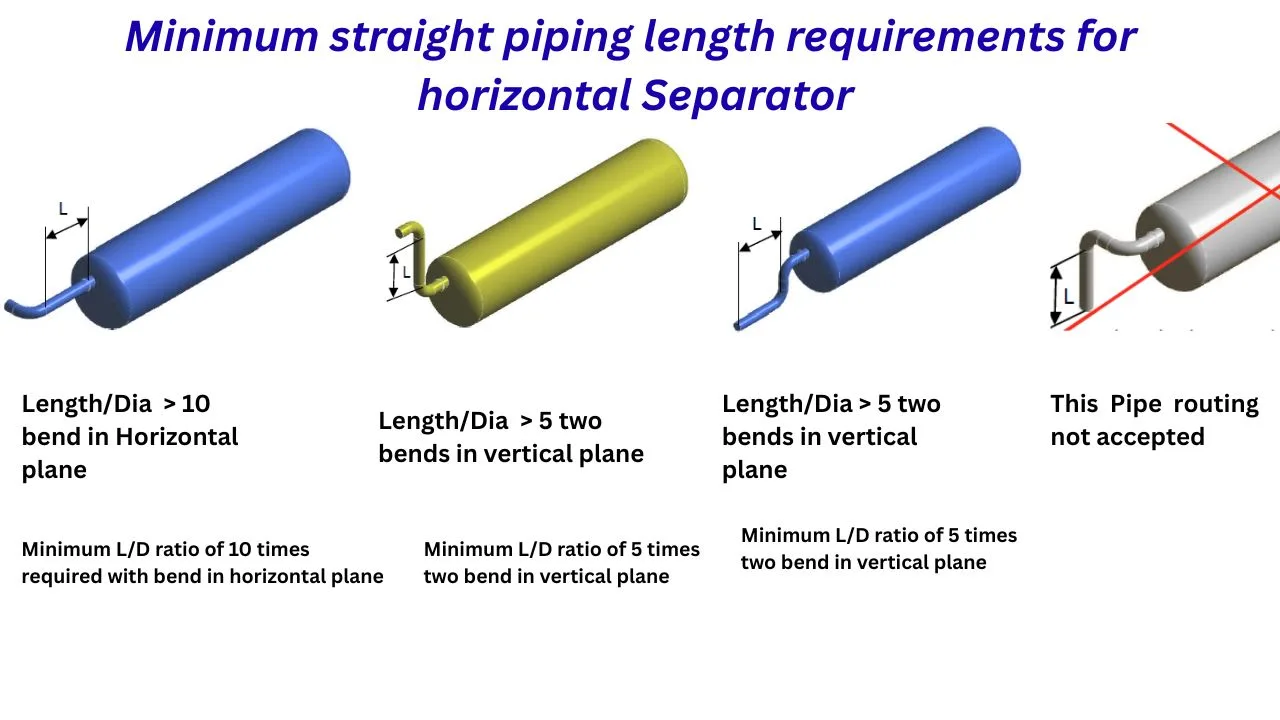

The figure below outlines minimum straight-run piping requirements for upstream configurations with bends in horizontal vessels with front inlet.
Top 10 FAQs on Separators Piping Straight Run Requirements
1. What are separators piping straight run requirements and why are they important?
- They ensure stable flow into the separator, reduce turbulence, and improve separation performance.
2. How do separators piping straight run requirements affect separation efficiency?
- By allowing droplets to coalesce and flow to stabilize, they boost gas-liquid and liquid-liquid separation efficiency.
3. What is the typical length for separators upstream piping straight run requirements?
- Generally 3D–10D (where D = pipe diameter), but it depends on vessel design and client specifications.
4. What problems occur if separators piping straight run requirements are ignored?
- Ignoring them can lead to swirl, flow maldistribution, droplet breakup, reduced efficiency, and even equipment damage.
5. How do bends impact separators piping straight run requirements?
- Bends cause swirling flow, so a straight-run downstream is required to restore stable conditions before entry.
6. Why do valves and reducers influence separators piping straight run requirements?
- Because they break large droplets into smaller ones, increasing the need for a straight section to aid coalescence.
7. Are separators piping straight run requirements the same for horizontal and vertical vessels?
- Not always. Requirements vary based on vessel orientation, inlet device type, and vendor recommendations.
8. Do industry codes specify separators piping straight run requirements?
- Some codes (like API guidelines) provide direction, but vendor and end-user specifications usually dominate.
9. Can CFD analysis optimize separators piping straight run requirements?
- Yes, CFD can refine designs, but maintaining straight-run piping remains an industry best practice.
10. Who defines the final separators piping straight run requirements in a project?
- The end user has the final say, though vendor guidelines and engineering standards strongly influence the decision.
