Carbon steel pipes are one of the most widely used materials in industrial piping systems. They are known for their strength, durability and cost-effectiveness, making them a popular choice in construction, manufacturing, and energy industries.
The main strengthening element in carbon steel is carbon itself. Increasing carbon content improves tensile strength, hardness, and wear resistance but reduces ductility (the ability to bend without breaking).
In this guide, we shall explore the types, properties, weldability, temperature limits and applications of carbon steel pipes.
What is Carbon Steel?
Carbon steel is an iron-carbon alloy where carbon content typically ranges from 0.05% to 2.0% by weight. It is classified into low-carbon (mild steel), medium-carbon, and high-carbon grades based on carbon percentage. The mechanical properties of cs such as strength, hardness, and ductility, vary with carbon content—higher carbon increases hardness and tensile strength but reduces ductility and weldability.
It is widely used in structural applications, piping, machinery and tools due to its strength, affordability, and ease of fabrication. It can be heat-treated through processes like annealing, normalizing, quenching, and tempering to modify mechanical properties for specific applications. Common standards include ASTM A106 for seamless pipes, ASTM A36 for structural plates and API 5L for pipeline steel.
However, it is susceptible to corrosion in humid or chemically aggressive environments because it lacks alloying elements like chromium or nickel that offer corrosion resistance. Protective coatings, galvanizing, or internal linings are often applied to enhance durability. Its machinability is generally good, though high-carbon grades require harder cutting tools.
Due to its balance of strength, cost-effectiveness, and versatility, carbon steel remains one of the most important engineering materials in industries such as construction, energy, manufacturing, and
Key Benefits of CS Pipes:
High strength and hardness
Cost-effective compared to stainless steel
Suitable for a variety of industrial applications
Available in different grades to meet specific needs

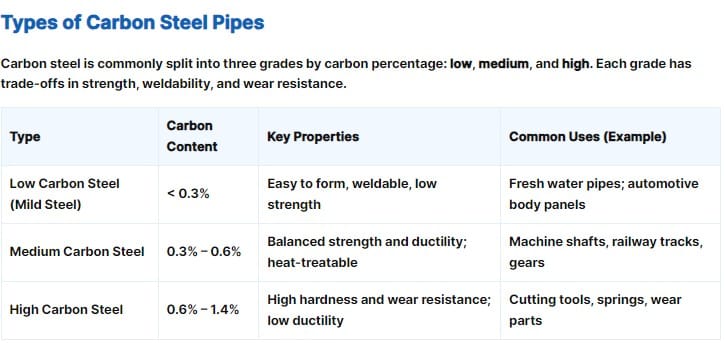

Types of CS Pipes
| Type of Carbon Steel | Carbon Content | Properties | Common Applications |
|---|---|---|---|
| Low Carbon Steel (Mild Steel) | < 0.3% | Low strength, high ductility, easy to weld & machine | Water supply pipelines, fencing, automotive body parts |
| Medium Carbon Steel | 0.3% – 0.6% | Balanced strength and ductility, heat treatable | Machinery parts, railway tracks, gears, axles |
| High Carbon Steel | 0.6% – 1.4% | Very hard and strong, least ductile, wear-resistant | Cutting tools, springs, knives, high-wear machine parts |
Common Carbon Steel Standards for Piping and Fittings
In piping engineering, material standards ensure the correct grade is used for specific pressure, temperature, and service conditions. The most widely used carbon steel grades for process piping are ASTM A106 and ASTM A53, along with several others for specialized applications.
Pipe Standards
ASTM A53 – Welded and seamless carbon steel (including galvanized) pipes for moderate temperature services.
Type F: Furnace Butt Welded, 1/8″–4″ NPS
Type E: Electric Resistance Welded (ERW), Grades A & B, 1/8″–24″ NPS
Type S: Seamless (SMLS), Grades A & B, 1/8″–26″ NPS
ASTM A106 – Seamless carbon steel for high temperature services. Grades A, B, and C; suitable for bending, flanging, and forming. Grade B allows higher carbon and manganese than Grade A.
ASTM A135 – ERW pipe for conveying fluid, gas, or vapor (Grades A & B).
ASTM A672 – Electric fusion welded steel pipe for high pressure at moderate temperatures.
ASTM A333 – Low-temperature service (< -18°C), seamless and welded steel pipe.
ASTM A671 – Electric fusion welded pipe for low temperature services (≥ 16″ NB). Common grade: Gr.6.
Fitting Standards
ASTM A105 – Forged carbon steel fittings, flanges, and valves for ambient/moderate temperature pressure systems.
ASTM A216 – Steel castings for high-temperature service (grades WCA, WCB, WCC).
ASTM A234 – Wrought carbon and alloy steel fittings for moderate/elevated temperatures.
ASTM A694 – Forged carbon and alloy steel for high-pressure transmission service flanges/fittings.
ASTM A420 – Low-temperature (< -18°C) buttweld fittings; WPL6 is common.
ASTM A350 – Low-temperature (< -18°C) forged/socket fittings; LF2 is common.
1. Low Carbon Steel Pipes (Mild Steel Pipes)
Carbon content: Less than 0.3%.
Advantages: Easy to cut, bend, weld, and shape.
Limitations: Lower strength compared to other types.
Example: Used in fresh water systems and automotive body panels.
2. Medium Carbon Steel Pipes
Carbon content: 0.3% – 0.6%.
Advantages: Higher strength, can be heat treated for better performance.
Limitations: Lower hardenability without alloying elements like Cr, Ni, Mo.
Example: Used in machinery shafts, railway tracks, and gears.
3. High Carbon Steel Pipes
Carbon content: 0.6% – 1.4%.
Advantages: Excellent hardness and wear resistance.
Limitations: Least ductile, harder to weld.
Example: Used in springs, cutting blades, and mining tools.
Carbon Equivalent (CE) and Weldability
To determine if a carbon steel pipe is weldable, the Carbon Equivalent (CE) value is calculated.
Formula:
Weldability Rules:
CE ≤ 0.43% → Weldable
Carbon > 0.35% → More brittle
Carbon > 0.43% → Not weldable
Performance at Different Temperatures
High Temperatures:
Loses strength above 650°F (345°C).
Tensile strength drops from 60,000 psi at room temperature to only 2,500 psi at 1000°F (540°C).
For >800°F (425°C), alloy steels are recommended.
Low Temperatures:
Becomes brittle below -28°C (-18°F).
Low Temperature Carbon Steel (LTCS) can work at -46°C.
Corrosion Resistance:
Poor against most acids, alkalis, and salts.
Requires coatings or linings in corrosive environments.
Applications of Carbon Steel Pipes
CS pipes are widely used in:
Fresh water supply lines
Plant air systems
Nitrogen pipelines
Fuel gas pipelines
Temperature range: -28°C (-18°F) to 425°C (800°F)
Example Applications:
Low carbon steel: Fresh water pipelines in industrial plants.
Medium carbon steel: Fuel gas lines in power plants.
High carbon steel: Wear-resistant machinery components.
FAQs About Carbon Steel Pipes
Q1: Which type of carbon steel pipe is easiest to weld?
Low carbon steel (mild steel) is the easiest to weld due to its low carbon content.
Q2: Can carbon steel pipes be used for high-temperature applications?
They can be used up to 425°C (800°F), but for higher temperatures, alloy steel is better.
Q3: Is carbon steel corrosion-resistant?
Not naturally. It needs coatings or galvanization in corrosive environments.
Q4: What is the best carbon steel grade for low temperatures?
Low Temperature Carbon Steel (LTCS) is suitable down to -46°C.
Conclusion
In industrial and engineering applications, the success of a project often depends on selecting the right material for the job. A material that offers strength, adaptability, and cost-effectiveness becomes an invaluable asset to designers, builders, and operators. The alloy discussed here stands out because it can be customized to suit a wide range of operational needs through adjustments in composition and targeted heat treatments.
Its ability to perform under demanding conditions—whether in extreme heat, high-pressure systems, or structural load-bearing roles—has made it a reliable choice across industries. However, like any engineered solution, it has its challenges. Exposure to moisture, chemicals, or harsh climates can impact longevity, and certain grades may be more prone to brittleness in cold environments. The advantage is that these vulnerabilities can be addressed with modern protection techniques such as coatings, galvanizing, and specialized maintenance programs.
Versatility is one of its strongest attributes. The same alloy can be used to build offshore platforms, transport fluids through pipelines, form the framework of large buildings, or serve as a vital part of industrial machinery. This adaptability ensures that engineers have a solution that works for both mass production and highly specialized applications.
Looking ahead, advances in metallurgical science and corrosion prevention technologies will likely expand its capabilities even further. Future innovations may make it lighter, stronger, and more resistant to environmental wear while maintaining affordability. By combining sound engineering practices with ongoing innovation, this material will continue to play a central role in infrastructure, manufacturing, and energy projects worldwide—proving that a well-balanced mix of durability, performance, and economy can stand the test of time.
When choosing carbon steel pipes, consider carbon content, weldability (CE), temperature range, and corrosion protection to ensure the best performance for your application.
