FPSO Full form is Floating Production Storage and Offloading (FPSO) is a type of offshore oil and gas production facility that is used in deepwater locations where fixed platforms are not feasible. FPSOs are large vessels that are designed to produce, store, and offload oil and gas from offshore fields. They are a popular solution for offshore development due to their flexibility, cost-effectiveness, and ability to operate in harsh environments.

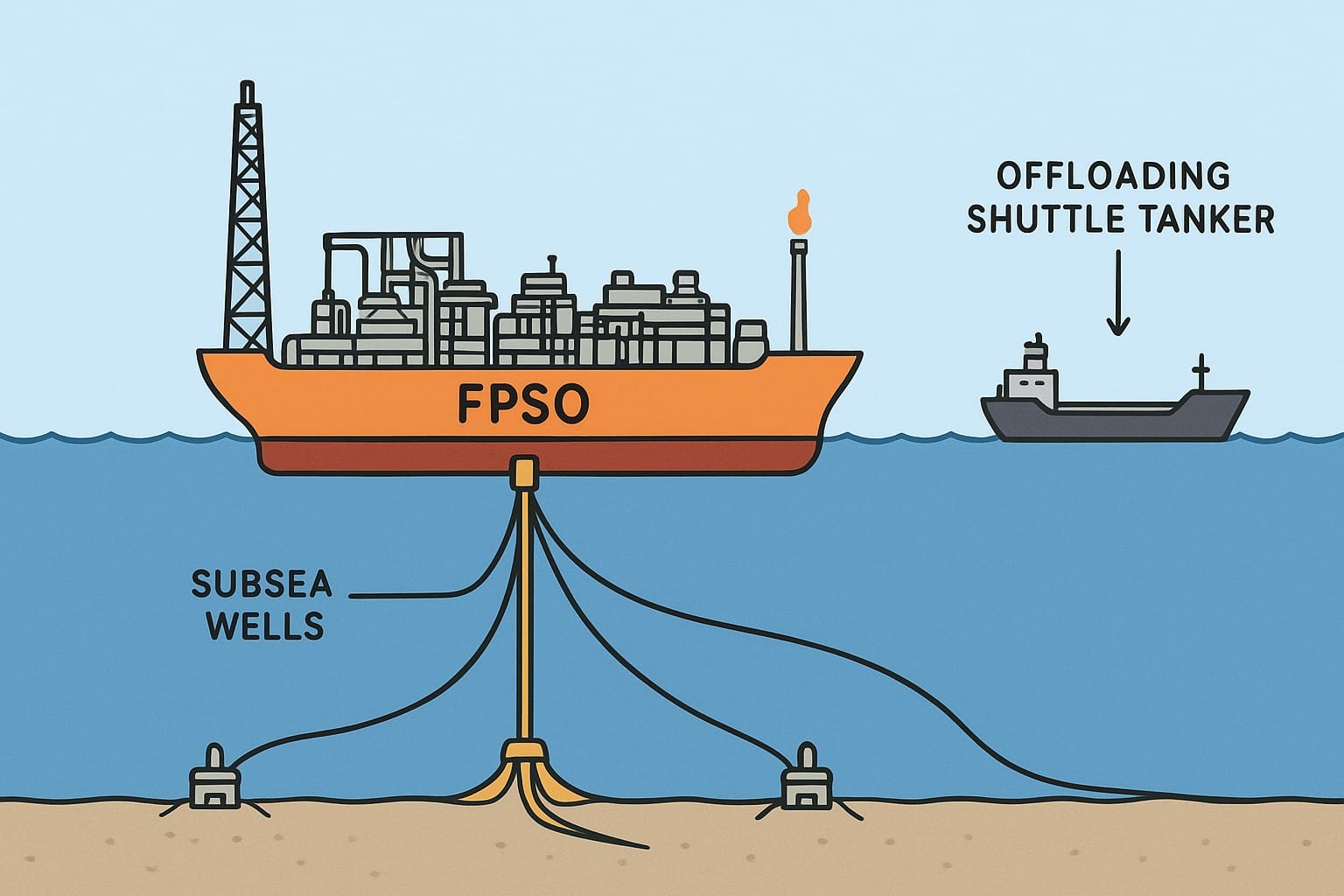

A Floating Production Storage and Offloading unit or FPSO, is a large, ship-shaped or barge-shaped floating facility designed to operate far offshore in the oil and gas sector. It acts as a complete offshore production hub, performing multiple critical roles directly at sea without relying on land-based infrastructure.
Its core functions of Floating Production Storage and Offloading unit (FPSO)
- Production – Once crude oil or natural gas is extracted from underwater reservoirs through subsea wells, the FPSO processes these raw hydrocarbons. This involves separating oil, gas, water, and sediments, and treating the oil or gas so it meets export or storage standards.
- Storage – After processing, the oil is stored in large tanks integrated into the hull of the vessel, often with the capacity to hold over a million barrels. This allows operations to continue without constant transport runs.
- Offloading – When the stored oil reaches a certain volume, it is transferred (offloaded) to shuttle tankers or, in some cases, pipelines for delivery to onshore refineries where it will be further refined into fuels and other products.
In simple terms, an Floating Production Storage and Offloading (FPSO) is like a self-contained floating oil refinery, storage depot, and export terminal all merged into one structure. This design allows it to operate efficiently in remote deepwater oil fields where building permanent platforms or long-distance pipelines would be extremely costly or technically challenging.
Its ability to produce, store, and transfer hydrocarbons directly from the sea makes it one of the most versatile and valuable assets in offshore energy production.
How an FPSO Produces Oil and Gas
An FPSO (Floating Production Storage and Offloading unit) is like a giant floating oil factory, warehouse, and delivery station combined into one vessel. It’s built to process, store, and ship oil and gas produced far offshore.
Here’s how the whole process works:
Step 1 – Lifting Oil and Gas from the Seabed
- Reservoirs deep under the seabed contain crude oil, natural gas, and water under high pressure.
- Subsea production wells (drilled by rigs or drillships) tap into these reservoirs.
- The extracted mixture flows into flowlines on the seabed.
- These flowlines connect to risers — vertical or flexible pipes that bring the mixture from the seabed up to the FPSO.
- The risers are attached to the FPSO via a turret mooring system at the bow (front) or amidships. This turret allows the FPSO to rotate (“weathervane”) with wind and waves without twisting the risers.
Step 2 – Separation on the FPSO
- The mixture first enters the topsides processing plant, which sits on the deck of the FPSO (the large flat surface above the hull).
- Inside three-phase separators, the flow is split into:
- Crude Oil – floats on top.
- Produced Water – settles at the bottom.
- Natural Gas – collects at the top as vapor.
- Heater treaters warm the oil to make separation more efficient.
- Electrostatic coalescers may be used to remove tiny water droplets still mixed in with the oil.
Step 3 – Oil Treatment and Storage
- After separation, the crude oil is further treated to remove remaining salt, water, and solids so it meets export specifications.
- The cleaned oil is pumped down into cargo tanks built inside the double hull at the bottom of the vessel.
- Large FPSOs can store 1–2 million barrels of oil in these tanks.
Step 4 – Gas Handling
- The separated natural gas is sent through gas compressors to increase its pressure.
- The gas can be:
- Used as fuel gas to power the FPSO’s turbines and generators.
- Re-injected back into the reservoir via gas injection wells to maintain reservoir pressure.
- Exported to shore through a gas export pipeline if available.
Step 5 – Water Disposal
- The produced water is processed in hydrocyclones and degassers to remove any oil droplets.
- Cleaned water is either:
- Discharged overboard (if it meets environmental regulations).
- Re-injected underground via water injection wells to help push more oil out of the reservoir.
Step 6 – Offloading the Oil
- When storage tanks are nearly full, a shuttle tanker moors alongside the FPSO.
- Flexible offloading hoses or loading arms transfer the crude oil from the cargo tanks into the tanker’s storage tanks.
- The shuttle tanker then sails to an onshore refinery, where the oil is processed into fuels and other products.
Main Parts of an FPSO Involved in Production
- Turret Mooring System – Anchors the FPSO to the seabed and connects it to risers.
- Risers – Pipes that carry fluids from the seabed wells to the vessel.
- Flowlines – Horizontal seabed pipes linking wells to the risers.
- Topsides Modules – Contain separators, heaters, compressors, and processing equipment.
- Cargo Tanks – Large storage tanks inside the hull for treated crude oil.
- Gas Compressors – Boost pressure for gas use or export.
- Offloading System – Hoses and arms for transferring oil to shuttle tankers.
Where is an FPSO Used?
Floating Production Storage and Offloading (FPSOs) are deployed in offshore oil and gas production zones, particularly in environments where conventional fixed platforms are either impractical or uneconomical. They are most valuable in situations that demand mobility, flexibility, and independence from shore-based infrastructure.
Some of the most common deployment scenarios include:
Deepwater and Ultra-Deepwater Fields
- These are offshore locations where the seabed lies hundreds to thousands of meters below the surface, such as oil-rich regions off the coasts of Brazil, West Africa, and the Gulf of Mexico.
- In these depths, constructing fixed steel platforms is technically challenging and prohibitively expensive. FPSOs provide a practical alternative, as they float above the wellheads and connect to subsea production systems via risers.
Regions Lacking Pipeline Infrastructure
- Some offshore oil fields are located so far from shore that export pipelines would require huge investments and years to construct.
- In such locations, the FPSO’s onboard storage capability eliminates the immediate need for pipelines. Oil can be stored on board and periodically offloaded to shuttle tankers, which then transport it to shore.
Remote Offshore Fields with Harsh Environmental Conditions
- Harsh-weather regions such as areas prone to heavy storms, strong ocean currents, or cyclones benefit from FPSOs equipped with turret mooring systems that allow the vessel to “weathervane” (rotate to face the wind and waves).
- Some Floating Production Storage and Offloading (FPSOs) are designed to disconnect from their mooring and relocate during extreme weather events, ensuring safety and preventing damage to both the facility and the subsea infrastructure.
By operating in these challenging and isolated locations, FPSOs make it possible to tap into oil and gas reserves that would otherwise remain inaccessible, enabling countries and companies to maximize resource recovery without the constraints of fixed offshore platforms.
How an FPSO Works – Step-by-Step
An Floating Production Storage and Offloading (FPSO) operates as a floating production chain, turning crude hydrocarbons from the seabed into a ready-to-export product while storing it for later transfer. Its operations can be broken down into four main stages:
Step 1 – Extraction from the Seabed
- Oil and gas are drawn from subsea production wells, which tap into deep underground reservoirs beneath the ocean floor.
- The hydrocarbons travel to the surface through risers — vertical or flexible pipes designed to withstand high pressure, extreme depths, and ocean movement.
- These risers may connect directly to the FPSO or be routed first through subsea manifolds, which act as gathering points that combine flows from multiple wells before sending them upward.
Step 2 – Onboard Processing
- Once on the Floating Production Storage and Offloading (FPSO) , the raw mixture of oil, gas, water, and sediments enters a sophisticated topsides processing plant located on the vessel’s deck.
- Separation systems (such as three-phase separators) split the mixture into individual streams:
- Oil is treated to remove water, gas, and impurities until it meets export quality standards.
- Gas may be used to power onboard systems, re-injected into the reservoir to maintain pressure, or exported via subsea pipelines.
- Produced water (water naturally present in the reservoir) is filtered and treated before being discharged into the sea in compliance with environmental regulations or re-injected underground.
- This stage transforms the raw hydrocarbon stream into market-ready crude oil and usable natural gas.
Step 3 – Storage in the Hull
- The treated oil is pumped into large storage tanks built into the FPSO’s double-hulled base — similar in design to an oil tanker’s cargo hold.
- Storage capacities can reach over 2 million barrels, enabling the FPSO to operate for weeks or months without needing to offload, depending on production rates.
Step 4 – Offloading to Transport Vessels
- When the storage tanks approach capacity, shuttle tankers or offtake vessels arrive alongside the FPSO.
- The crude oil is transferred using flexible loading hoses or mechanical loading arms, depending on the FPSO’s configuration.
- These tankers then transport the oil to onshore refineries, where it is further processed into fuels, petrochemicals, and other products.
An Floating Production Storage and Offloading (FPSO) acts as a closed-loop offshore production system — extracting hydrocarbons from beneath the ocean floor, processing and purifying them at sea, holding them in massive storage tanks, and finally transferring them to ships for delivery. This allows continuous production in even the most remote deepwater environments without the need for permanent offshore pipelines.
Why Use FPSOs in Oil & Gas?
Floating Production Storage and Offloading (FPSOs) have become a preferred choice for many offshore developments because they address some of the most persistent challenges in offshore oil and gas production. Their design and operational flexibility allow them to function efficiently in locations where fixed structures or extensive infrastructure would be too costly or risky.
Here’s why they are so valuable:
Mobility for Redeployment
- Unlike fixed platforms, which are anchored permanently, FPSOs can be disconnected, relocated, and redeployed to a new field once the current reservoir’s production declines.
- This reusability helps operators extend the asset’s service life across multiple projects, improving return on investment.
Cost Savings on Infrastructure
- Offshore oil fields often require long pipelines to transport crude to onshore facilities — which can cost billions to design and install.
- FPSOs eliminate much of this expense by storing the processed oil onboard and transferring it to shuttle tankers for transport, bypassing the need for immediate shore-based pipeline connections.
Faster Deployment Timelines
- Constructing and installing a large fixed platform can take several years, especially in deepwater environments.
- In contrast, FPSOs can be converted from existing tanker hulls or built as new units, allowing for a quicker start to production once the subsea wells are ready.
Operational Flexibility
- Floating Production Storage and Offloading (FPSOs) can handle oil production, gas processing, or both, depending on the field’s requirements.
- They operate in a wide range of water depths, from relatively shallow continental shelves to ultra-deepwater fields over 2,000 meters deep.
Weather and Sea Condition Resilience
- Equipped with turret mooring systems, many FPSOs can weathervane — rotating to face prevailing winds, waves, and currents.
- In extreme environments, some are designed to disconnect from moorings and sail to safety during severe storms or cyclones, protecting both the facility and subsea assets.
In short, Floating Production Storage and Offloading (FPSOs) offer a blend of mobility, economic efficiency, and adaptability that makes them indispensable for developing offshore resources in challenging and remote locations.
Floating Production Storage and Offloading (FPSOs) are typically converted from existing oil tankers or purpose-built vessels. They are equipped with a range of equipment, including production facilities, storage tanks, mooring systems, and offloading systems. FPSOs are operated by a team of personnel who live and work on the vessel, and they are designed to be self-sufficient for extended periods of time.
FPSOs are used in a variety of offshore oil and gas fields around the world. They are particularly common in deepwater locations where water depths exceed 500 meters, and where fixed platforms are not feasible due to the high cost and technical challenges involved in construction and installation.
The process of converting a tanker into an Floating Production Storage and Offloading (FPSOs) typically involves several stages. The first stage involves the selection of a suitable tanker, which must meet certain criteria such as size, age, and structural integrity. The tanker is then stripped of its existing equipment and outfitted with production facilities, storage tanks, and other equipment required for offshore oil and gas production.
The conversion process can take several months to complete, and involves a range of activities such as structural modifications, equipment installation, and system integration. Once the conversion is complete, the FPSO is transported to the offshore field where it will be operated.
One of the key advantages of FPSOs is their flexibility. They can be used in a range of offshore environments, from shallow water to ultra-deepwater locations. They are also highly adaptable, and can be modified to accommodate changing production requirements, as well as to meet new safety and environmental regulations.
Another advantage of Floating Production Storage and Offloading (FPSOs) s is their cost-effectiveness. Compared to fixed platforms, FPSOs are generally less expensive to construct and install. They also require fewer personnel to operate, which can lead to lower operating costs over the long term.
Floating Production Storage and Offloading (FPSOs) are also well-suited to harsh offshore environments. They are designed to withstand extreme weather conditions, including high winds, waves, and currents. They are also equipped with sophisticated control systems that allow them to operate safely and efficiently in challenging conditions.
One of the challenges of FPSOs is their size. They are typically large vessels that require a significant amount of space to operate. This can make it difficult to locate suitable sites for the vessel, particularly in crowded offshore environments.
Another challenge of Floating Production Storage and Offloading (FPSOs) is their maintenance requirements. They require regular maintenance to ensure that they are operating safely and efficiently. This includes activities such as equipment inspections, repairs, and upgrades.
Overall, Floating Production Storage and Offloading (FPSOs) are an important tool for offshore oil and gas production. They offer a flexible, cost-effective, and safe solution for developing offshore fields, and are well-suited to a range of offshore environments. While they present some challenges, such as their size and maintenance requirements, they continue to be a popular choice for offshore development due to their many advantages.
FAQ
1. What exactly is an FPSO, and how does it differ from other offshore facilities?
An FPSO (Floating Production Storage and Offloading unit) is a floating vessel that processes, stores, and transfers oil and gas extracted from offshore wells. Unlike fixed oil platforms, FPSOs can be relocated to different fields, offering greater flexibility for projects in remote or deepwater locations.
2. How does an FPSO collect oil and gas from under the sea?
Oil and gas are brought up from subsea wells through risers — specialized vertical or flexible pipes — connected to the vessel’s mooring system. These pipes carry the mixed hydrocarbons from the seabed directly to the FPSO’s processing plant.
3. Does an FPSO drill for oil or gas?
No. The drilling is carried out by separate drilling rigs or drillships. Once wells are completed, the FPSO’s role begins — processing, storing, and preparing the hydrocarbons for export.
4. What is done with the gas produced onboard an Floating Production Storage and Offloading FPSO?
Gas separated during processing may be used to power the vessel’s operations, re-injected into the reservoir to boost oil recovery, piped to shore for sale, or flared if it cannot be utilized.
5. How long can an FPSO remain at a single offshore site?
Many FPSOs are designed to operate continuously in the same field for 15–25 years without needing to return to shore, thanks to onboard maintenance and robust mooring technology.
6. What are the main benefits of using Floating Production Storage and Offloading, FPSOs in offshore projects?
They are mobile, eliminate the need for costly export pipelines, can operate in deep or ultra-deep water, have faster deployment times, and are engineered to withstand severe offshore weather conditions.
7. How is crude oil stored inside an FPSO?
Once processed to meet export standards, crude oil is pumped into massive cargo tanks integrated into the vessel’s double-hull structure, ready for eventual offloading.
8. How is the stored oil delivered from an FPSO to shore facilities?
Shuttle tankers moor alongside the FPSO, and the oil is pumped through flexible offloading hoses or articulated loading arms. The shuttle tanker then transports the crude to refineries on land.
9. How do FPSOs handle extreme storms or rough seas?
Most FPSOs are equipped with a weathervaning turret that allows them to rotate with wind and wave direction. Some are also designed to disconnect from their mooring and relocate to safer waters during extreme weather events.
10. Where are FPSOs most commonly deployed today?
They are widely used in offshore oil regions such as Brazil’s pre-salt fields, West Africa’s deepwater basins, the North Sea, Southeast Asia, and parts of the Gulf of Mexico — especially where pipeline infrastructure is unavailable or impractical.
