Schedule 160 pipe is a type of steel pipe that has a wall thickness that is 160 times the nominal pipe diameter (NPS). This means that a 1″ schedule 160 pipe would have a wall thickness of 0.16″.
Schedule 160 pipe is typically used in applications where high pressure and high strength are important, such as in the oil and gas industry and in fire sprinkler systems. It is also used in some applications where corrosion resistance is important, such as in the chemical processing industry.

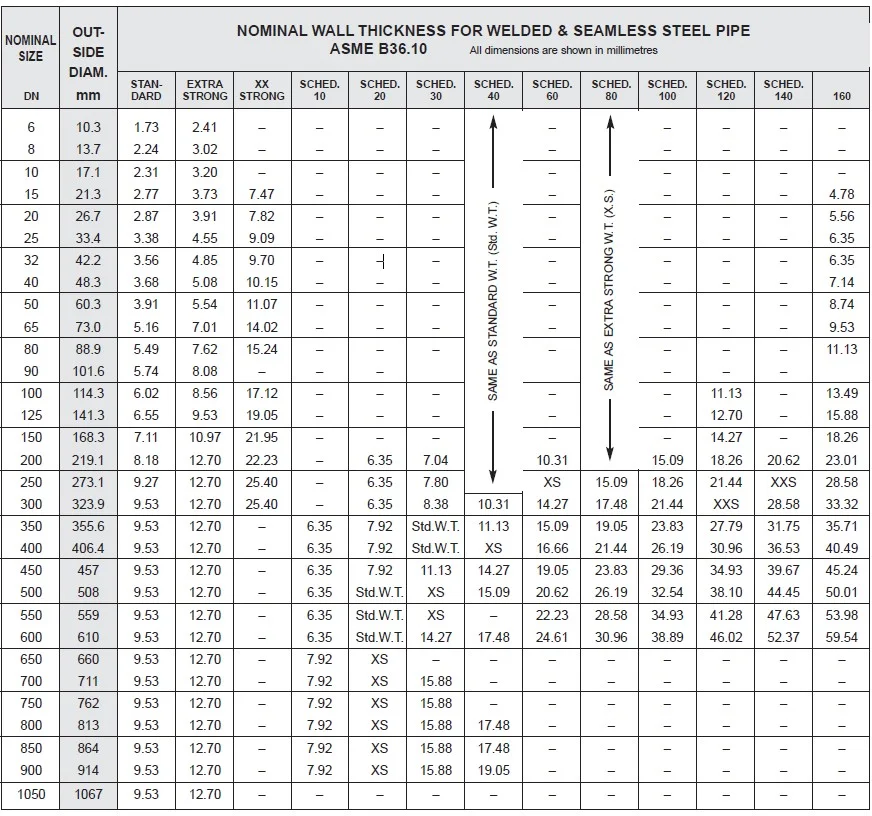

Nominal Wall thickness for welded and Seamless steel pipe schedule chart
![what is Schedule 160 Pipe Schedule 160 Pipe](https://thepiping.com/wp-content/uploads/2023/08/schedule-20chart-300x281-1-300x281.jpg.webp)
Advantages of schedule 160 pipe
High pressure resistance: Schedule 160 pipe can withstand very high pressures, making it ideal for applications where the pipe will be subjected to high loads.
High strength: Sch160 pipe is a strong pipe that can handle a lot of stress. This makes it perfect for situations where the pipe will move or vibrate a lot.
Corrosion resistance: Sch 160 pipe is often made of a corrosion-resistant material, such as carbon steel or stainless steel. This
makes it ideal for applications where the pipe will be exposed to corrosive chemicals or environments.
Disadvantages of sch 160 pipe
Weight: Sch 160 pipe is a heavy pipe. This can make it difficult to transport and install.
Cost: Sch 160 pipe is a more expensive pipe than other types of pipe. This is because it uses more material to make the pipe stronger and more corrosion-resistant.
Applications of schedule 160 pipe
- Oil and gas industry
- Fire sprinkler systems
- Chemical processing industry
- Sewage treatment plants
- Stormwater drainage systems
- Bridges and other structures
- Heavy machinery
How to select schedule 160 pipe
When selecting a schedule 160 pipe for a particular application, it is important to consider the following factors:
- The type of fluid that will be flowing through the pipe
- The length of the pipe
- The presence of bends or fittings
- The environmental conditions
It is also important to consult the manufacturer’s specifications to ensure that the pipe is capable of withstanding the expected pressure and temperature.
Conclusion
Schedule 160 Pipe is a solid pipe that can be used for many different things. It is a good choice for applications where high pressure, high strength, and corrosion resistance are important. However, it is important to consider the weight and cost of the pipe before making a decision. Schedule 10S Pipe you can check from the this source
