what is Insulating gasket

Insulating gasket are designed to prevent galvanic corrosion between flanges of dissimilar metals, for example a carbon steel flange bolted to a stainless steel flange. A conducting liquid such as water must be present between the two flanges for galvanic corrosion to occur.

On oil and dry gas duties, insulating gaskets are not required. Because of the general unreliability of insulating gasket, their use should be minimized to areas where only absolutely necessary and only then when agreed with by your Engineering Department.

Insulation kit will consist of the following

  • Insulating  gasket
  • insulating  sleeves to be placed around the stud bolts
  • insulating washers and steelwashers.

The conditions that cause galvanic corrosion (two dissimilar metals brought into contact with a conducting medium) must be guarded against. Uncoated carbon steel stud bolts used on stainless steel flanges in a wet environment, and carbon steel pipework screwed into brass gate valves on water duties, are two examples of galvanic cells which can easily be avoided.

Three types of insulating kits are available

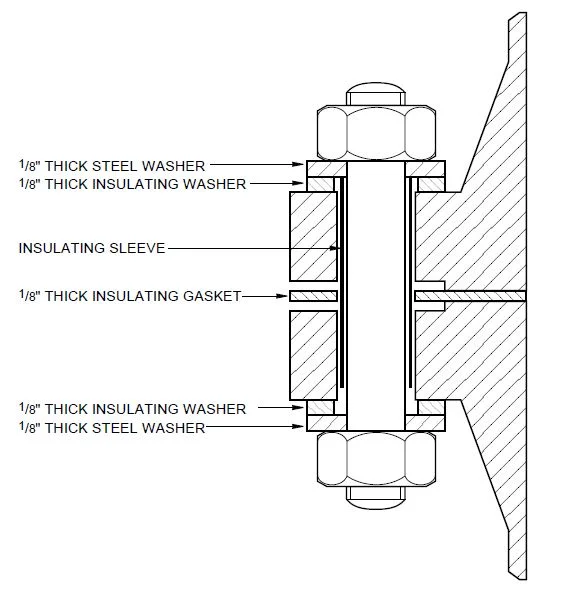

Full Face Gasket Insulating Set:-This set is suitable for both flat face and raised face flanges. The gasket style has the advantage of minimizing the ingress of foreign matter between the flanges and therefore reduces the risk of a conductive path between the two flanges.

Inside Bolt Location Gasket Insulating Set:-Inside Bolt Location  Gasket Insulating Set Is only suitable for raised face flanges and the gasket is located within the bolts.

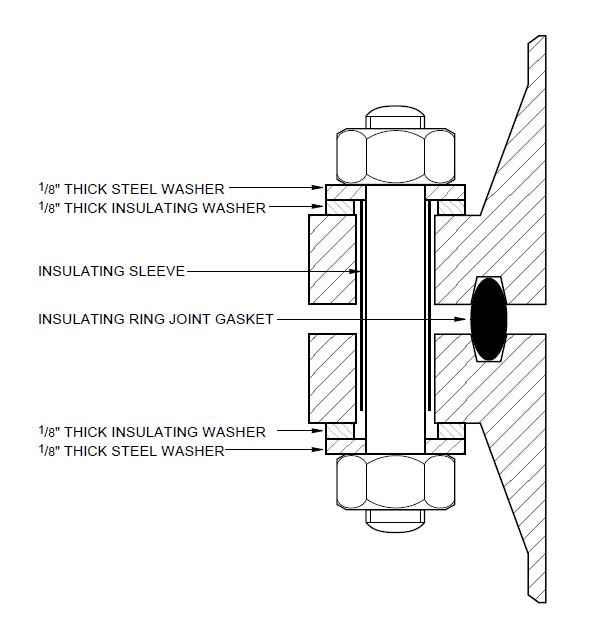

Insulation gasket typesRing Joint Gasket Insulating Set:-The insulating oval RTJ will fit into a standard RTJ flange ring groove.

Ring Joint Gasket Insulating Set

Insulating Sleeve and washer

Insulating sleeves crafted from high-density polyethylene, NEMA grade LE phenolic, and Mylar are accessible across a comprehensive array of dimensions. Additionally, one-piece integrated sleeves and washers, constructed from Minton material, offering exceptional compression strength, are also at hand. Integrated sleeves are procurable for sizes up to 1-1/2″. A diverse selection of high-temperature sleeves is also readily stocked. Accompanying each insulating washer is a 1/8″ thick S.A.E. electro-plated steel washer, designed to shield the insulating washer against potential damage from the nut. Advanced flange insulation sets are on offer, available in both single washer and double washer kits.

Insulating gasket Kit Identification and Specification

  • Nominal Pipe Size and Pipe Schedule: Must always be specified. Insulating gaskets, unlike CAF gaskets, are an exact fit, from the OD to the ID of the flange.
  • Flange Pressure Class: Always to be specified.
  • Style of Insulating Kit: Full face or inside bolt location.
  • Gasket Material: Usually phenolic laminate or neoprene faced phenolic laminate

Procedure for Insulating gasket Kit

Always use a new insulating kit which has not been removed from the manufacturer’s sealed package. Good insulation requires the insulating parts of the kit to be clean and undamaged.

  • Follow the manufacturer’s installation instructions.
  • Use a torque wrench or tensioning equipment to tension the stud bolts to the manufacturer’s recommendations. This is important as insulating gasket are particularly susceptible to splitting or crushing if overloaded.
  • Ensure that the flange face and the stud bolts are clean.
  • Check for any conducting paths between the two mating flanges which would otherwise render the insulating gasket ineffective.
  • If in doubt, seek advice from your Engineering Department.
  • Do not re-use old, damaged or unclean insulating gasket kit. These will not provide effective insulation and may be subject to gasket failure.
  • Do not mix and match parts from different insulation kits.
  • Do not use air driven impact tools when bolting up a flange as they may cause the insulating washers to crack.
Insulating gasket can prevent galvanic corrosion between flanges of dissimilar metals. So select the insulating gasket  as per their requirement.
