Gasket: what are the types of Gasket

A gasket is a mechanical seal that is utilized to occupy the space between at least two mating surfaces to forestall spillage of liquids or gases under pressure. Gaskets are regularly utilized in different businesses, including auto, aviation, plumbing, and assembling.

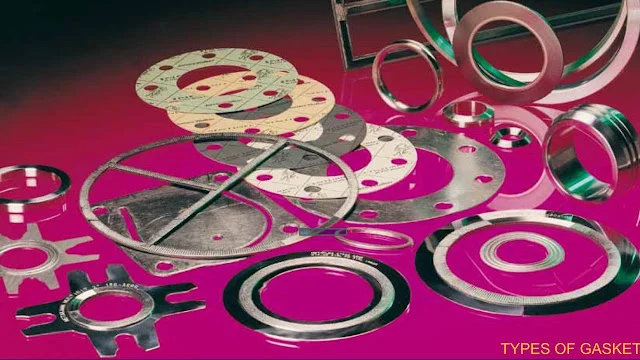

types of gaskets

Types of gasket

Sheet Gaskets: These are the most fundamental kind of gaskets and are produced using materials like elastic, stopper, or non-asbestos filaments. Sheet gaskets are sliced to the expected shape and size for a specific application.

Sheet gaskets are flexible and utilized in different applications, including water pipes, oil container, valve covers, and other low to medium strain fixing circumstances.

Spiral wound Gaskets: These gaskets are made by winding a metal strip, like hardened steel, and a filler material (e.g., graphite) in a winding example. Spiral wound gaskets are normally utilized in high-temperature and high-pressure applications.

They are regularly utilized in high-temperature and high-pressure applications like in pipelines, boilers, heat exchangers, and treatment facilities.

Ring Joint Gaskets: Ring joint gaskets are utilized in flanged associations in oil and gas businesses. They are produced using metal and have an octagonal or oval shape.

Ring joint gaskets are utilized in high-pressure applications, especially in the oil and gas industry for fixing flanged associations in wellheads, valves, and other gear.

Camprofile Gaskets: These gaskets have a serrated or scored profile on one or the two sides, typically produced using metal with a non-metallic filler. Camprofile gaskets give fantastic fixing and are appropriate for high-strain and high-temperature applications.

Camprofile gaskets are great for high-tension and high-temperature applications like in heat exchangers, blowers, and gas turbines.

O-Rings: O-rings are round elastomer gaskets that are set in grooves between two mating parts. They give a dynamic or static seal in different applications.

O-rings are generally utilized in water powered frameworks, pneumatic frameworks, motors, siphons, and numerous different applications where a dynamic or static seal is required.

Metal gaskets

Jacketed Gaskets: These gaskets comprise of a delicate filler material (e.g., graphite or PTFE) encased in a metal coat. They are generally utilized in applications with high temperature and tension varieties.

Metal jacketed gaskets track down applications in high-temperature and high-pressure conditions, remembering for heat exchangers, boilers, and exhaust frameworks.

Elastic Gaskets: Elastic gaskets, like neoprene or silicone gaskets, are utilized in applications where adaptability and protection from liquids and gases are required.

Elastic gaskets are utilized in different ventures for their adaptability and protection from liquids and gases. They can be tracked down in car motors, plumbing frameworks, and different hardware.

Copper Gaskets: Copper gaskets are much of the time utilized in high-temperature applications and give an amazing seal because of the pliability of copper.

Copper gaskets are usually utilized in high-temperature applications, for example, in ventilation systems, chamber head gaskets, and some modern gear.

Kammprofile Gaskets: Kammprofile gaskets are developed with a strong metal center and a serrated fixing surface. They offer great fixing execution and are generally utilized in heat exchangers and other modern gear.

Kammprofile gaskets are utilized in heat exchangers, pressure vessels, and spine associations that require a dependable and strong seal.

PTFE Gaskets: PTFE (Polytetrafluoroethylene) gaskets are impervious to synthetic substances and have a low coefficient of contact. They are utilized in applications including forceful media.

PTFE gaskets are utilized in applications including forceful synthetic compounds, like in substance handling gear, siphons, and valves.

Each kind of gasket enjoys its benefits and limits, so it’s vital for select the right gasket material and configuration in light of the particular prerequisites of the application. Factors like temperature, pressure, substance similarity, and rib surface completion are critical contemplations in picking the proper gasket type.
