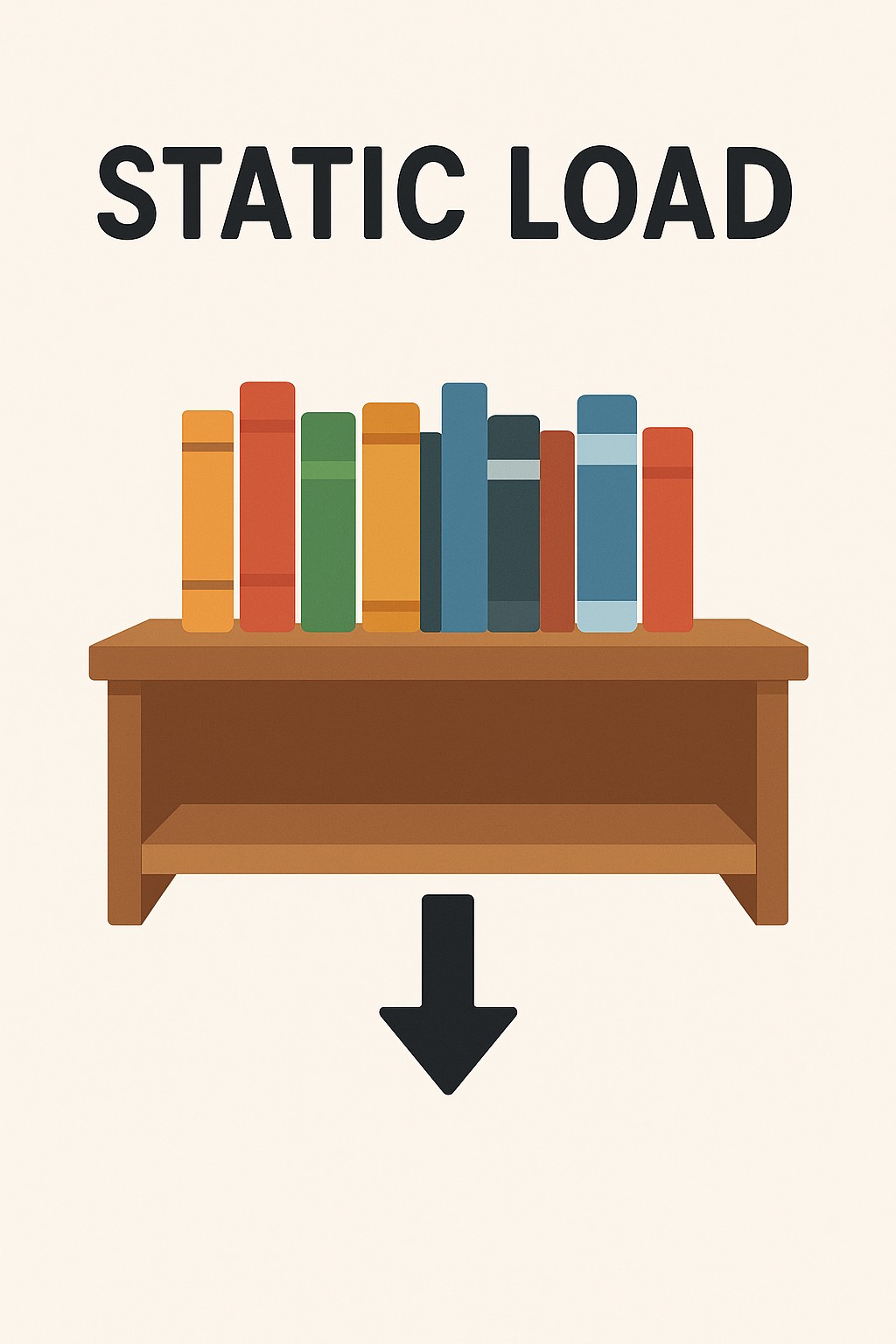

what are static loads

static loads is a force that is applied to a structure or object and does not change over time. Static loads are typically caused by the weight of objects, such as the weight of a building or the weight of a car parked on a road. Static loads can also be caused by other factors, such as the wind or the weight of water.

Engineers use static loads to design buildings, bridges, and other structures to make sure they can handle the constant forces they will experience. It’s essential to consider static loads to ensure that objects and structures remain safe and stable over time.

Types of Static Loads

Dead Load: The dead load is the weight of the building or structure itself and any permanent components attached to it. This includes the materials used in construction, such as bricks, concrete, steel, and wood, as well as fixed elements like walls, floors, roofs, and columns. Essentially, it’s the weight of everything that doesn’t move or change position. Dead load remains constant over time because the materials and fixed elements don’t suddenly get heavier or lighter. When engineers design a building, they carefully calculate the dead load to ensure that the supporting elements can handle this constant weight without collapsing.

Live Load: Live load refers to the temporary and variable weight that a structure experiences due to the presence of people, furniture, equipment, or any movable items inside or on it. Examples of live loads include people walking or congregating in a building, furniture being placed or rearranged, vehicles driving onto a bridge, or heavy machinery being used in a construction site. Since live loads can change frequently depending on how people or objects move, engineers must consider these dynamic forces when designing structures to prevent overloading or failure.

Snow Load: Snow load is the additional weight exerted on a building or structure when snow accumulates on its surfaces, such as roofs, walls, and ledges. The amount of snow load a structure experiences depends on factors like the geographic location, local climate, snow density, and duration of snowfall. In areas with heavy snowfall, engineers design buildings to withstand the extra weight of accumulated snow to prevent roof collapse and structural damage.

Wind Load: Wind load refers to the force exerted by the wind on the exposed surfaces of a building, such as walls, roofs, and towers. Wind can exert pressure on these surfaces, attempting to push them in different directions. The wind load a structure experiences depends on the wind speed, the height of the building, its shape, and the surrounding environment. Engineers use appropriate materials, forms, and support systems to construct buildings and structures that can endure wind pressure.

Seismic Load: Seismic load is the force generated during an earthquake or ground shaking. Earthquakes produce seismic waves that can cause buildings and structures to vibrate and sway. The intensity of seismic load depends on factors such as the earthquake’s magnitude, distance from the epicenter, and the local soil conditions. In earthquake-prone regions, engineers implement seismic-resistant designs to ensure that structures can withstand the shaking and keep occupants safe during seismic events.

Thermal Load: Thermal load arises from temperature changes, causing materials in a structure to expand or contract. When exposed to heat, materials expand, and when they cool down, they contract. Over time, these expansions and contractions can create stress in the structure, affecting its integrity. Engineers consider thermal properties of materials and anticipate temperature variations to design structures that can handle thermal loads without significant deformation or damage.

Soil Pressure: Soil pressure is the lateral force exerted by the soil against a structure’s foundation or retaining walls. When building on the ground or constructing retaining structures, the soil pushes against the sides of the foundation or wall. Engineers need to account for this pressure to ensure that the foundation or wall remains stable and doesn’t shift or collapse due to the soil’s forces.

what will happen if static load is not considered in the design?

If static load is not considered in the design of a structure, it can lead to a number of problems, including:

  • Deformation: The structure may deform under the weight of the static load. This deformation can be small or large, depending on the magnitude of the load and the strength of the structure.
  • Failure: If the static load is too large, the structure may fail. This failure can be catastrophic, leading to collapse of the structure.
  • Damage: The structure may be damaged by the static load. This damage can range from minor cracks to major structural failure.

In some cases, the failure of a structure due to static load can be fatal. For example, in 2006, the collapse of a pedestrian walkway in Italy killed 11 people. The walkway was designed to support a static load of 500 people, but it collapsed when it was subjected to a static load of 1,000 people.

It is important to consider static load in the design of any structure. By doing so, engineers can help to ensure that the structure is safe and will not fail under the weight of static loads.

Examples of what can happen if static load is not considered in the design

  • A bridge may collapse under the weight of cars and pedestrians.
  • A building may collapse under the weight of its own weight or the weight of snow or wind.
  • A machine may break under the weight of its own weight or the weight of the materials it is processing.

Understanding and appropriately accounting for these different types of static loads are essential for engineers and architects when designing and constructing safe and reliable buildings and structures. Properly considering and accommodating these loads help ensure that structures can maintain their stability, durability, and safety throughout their lifespan. By considering static load in the design process, engineers can help to prevent these types of failures and keep people safe.
