What is difference cast iron vs ductile iron

Cast iron and ductile iron are both types of iron alloys, but they have different properties. Cast iron is a brittle material that is prone to cracking, while ductile iron is more ductile and can withstand more stress. Ductile iron is also more corrosion-resistant than cast iron.
cast iron vs ductile iron

Cast iron vs ductile iron

Cast iron and ductile iron are both types of iron alloys that are made by melting iron and adding carbon and other elements. However, there are some key differences between the two materials.

Identifying the difference between cast iron vs ductile iron can be done by observing their physical characteristics, such as appearance, texture, and mechanical properties. Here are some key factors to help distinguish between the two.  Below mention  is more detail about the methods to identify cast iron vs ductile iron.

1. Appearance and Color

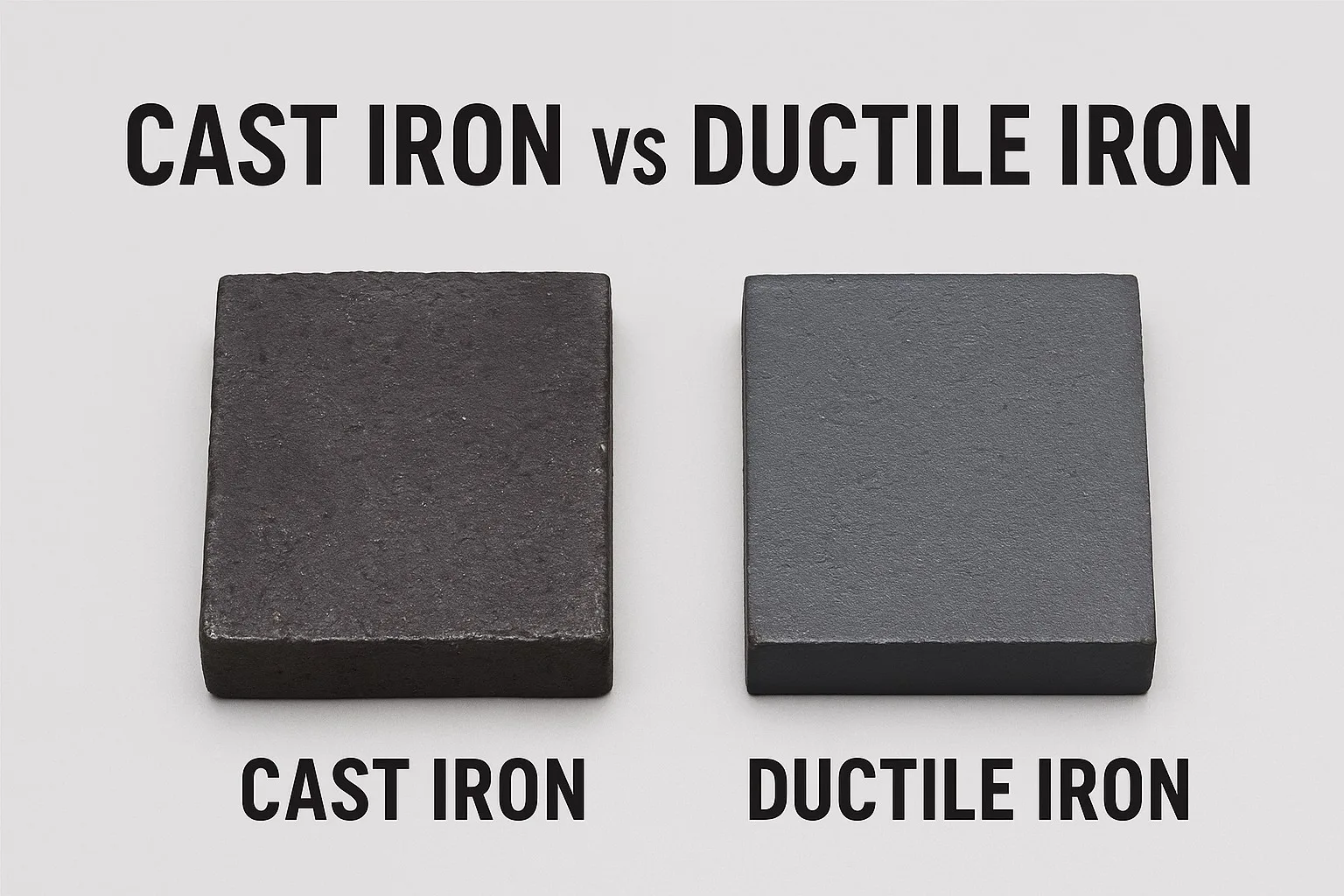

Cast Iron: Cast iron typically has a dark grey or black color and a rough, grainy texture. It may have a slight metallic sheen but is generally not very reflective. The fractured surface often reveals a granular appearance.

Ductile Iron: Ductile iron, also known as nodular cast iron or spheroidal graphite iron, has a more uniform and smoother appearance compared to cast iron. It has a graphite-like texture and can come in different colors, ranging from grey to white. The fractured surface often reveals a more fibrous or nodular appearance due to the presence of graphite nodules.

2. Micro-structure

Cast Iron: Cast iron has a micro structure containing graphite flakes, which are interconnected and provide the material with its characteristic grey color. The presence of graphite flakes makes the material brittle and less ductile.

Ductile Iron: Ductile iron, on the other hand, has a different micro-structure where the graphite is present in the form of nodules or spheroids. This change in micro structure is achieved through the addition of small amounts of elements like magnesium or cerium during the casting process. The nodular graphite imparts ductility to the iron, making it less brittle and more resistant to impact.

3. Tensile Strength and Ductility

Cast Iron: Cast iron is relatively brittle and has low ductility. It has low tensile strength and is unsuitable for applications that require high levels of impact resistance or flexing.

Ductile Iron: Ductile iron exhibits higher tensile strength, impact resistance, and elongation compared to cast iron. It is more ductile and can deform without fracturing under tensile stress.

4. Application Areas

Cast Iron: Cast iron is frequently utilized in situations where strong stiffness and compressive strength are necessary. Some examples include heavy machinery bases, engine blocks, and certain architectural elements.

Ductile Iron: Ductile iron is preferred in applications where both strength and ductility are necessary. It is often used in water pipelines, automotive parts, machinery components, and structural applications.

5. Spark Test

When performing a spark test, use a grinding wheel or file to create sparks by touching it against the surface of the iron. Observe the sparks generated:

Cast Iron: Cast iron typically produces short, discontinuous, and dull red sparks.

Ductile Iron: Ductile iron generally produces longer, continuous, and brighter white sparks.

6. Density

In general, ductile iron has a slightly higher density than cast iron due to the different microstructures. However, the difference in density might not be easily discernible without using precise measurements.

7. Grain Structure

Under a microscope, the grain structure of cast iron and ductile iron is noticeably different. Cast iron has a more jagged and coarse grain structure, while ductile iron has a more rounded and nodular grain structure.

8. Tapping Test

When tapped with a hammer, cast iron tends to produce a dull thud sound due to its brittle nature. Ductile iron, being more ductile and less brittle, produces a clearer and more resonant sound.

9. Break Test

Breaking a small piece of the material and examining the fracture surface can also give some indications. Cast iron fractures are often rough and grainy, while ductile iron fractures are smoother and have a more fibrous appearance due to the presence of graphite nodules.

10. Application and Context

Consider the context in which the iron is used. For example, if you are dealing with pipes or fittings in a water distribution system, there is a higher probability that they are made of ductile iron, as ductile iron is commonly used in water pipelines due to its strength and ductility.

11. Magnetic Properties

Both cast iron and ductile iron are ferromagnetic, meaning they are attracted to magnets. However, this property alone may not be sufficient to definitively differentiate between the two types.

12. Chemical Composition

Cast iron and ductile iron have different chemical compositions, which contribute to their distinct micro-structures and mechanical properties. The chemical composition of each iron type is determined during the casting process, where specific elements and alloys are added to achieve the desired properties.

13. Material Testing and Analysis

For accurate and conclusive identification of cast iron vs. ductile iron, more advanced material testing and analysis methods can be employed. These methods include

Spectroscopy: Chemical composition analysis can be conducted using spectroscopy techniques, such as optical emission spectroscopy (OES) or X-ray fluorescence (XRF) analysis. These methods can determine the elemental composition of the material.

Micro-structure Examination: If graphite flakes or nodules are present, a thorough micro structure study utilizing microscopy methods like optical microscopy or scanning electron microscopy (SEM) can determine whether the iron is cast or ductile.

Tensile Testing: A test specimen is subjected to controlled forces in order to evaluate its mechanical qualities, such as tensile strength, yield strength, and elongation. This test can be used to precisely determine how the material will react mechanically.

Hardness Testing: Hardness testing measures the material’s resistance to indentation and can provide additional information about its mechanical properties and type.

14. Markings and Identification Codes

Ductile iron may be marked with the letters DI or ductile. Cast iron is not typically marked. However, some cast iron products may be marked with the letters CI or cast iron.


Identifying iron types based on visual inspection and simple tests may not always be foolproof, as there are variations in the composition and properties of both cast iron and ductile iron. For critical applications, it is essential to obtain precise material information through certified material testing.

Professional Assistance

If you need to accurately identify the type of iron you are working with or have concerns about the material’s suitability for a particular application, consult with a materials engineer or a qualified professional with expertise in metallurgy and material analysis.


Identifying cast iron vs ductile iron involves considering multiple factors, including appearance, micro structure, mechanical properties, and application areas. While visual inspection, spark testing, tapping tests, and basic methods can provide initial indications, more accurate identification requires advanced material testing and analysis techniques, such as spectroscopy, micro-structure examination, and mechanical testing.

For critical applications or when uncertain about the iron type, it is best to seek the expertise of materials engineers or qualified professionals with experience in metallurgy and material analysis. Proper identification ensures the appropriate selection and use of iron materials, leading to optimal performance, safety, and efficiency in various industrial applications.
